Hygroscopic AntiFog Film

Download
  • UGAM offers superior Anti-Fog film by tuning formula the Tri-Acetate Cellulose（TAC）and doing chemical treatment over the film.
  • UGAM superior Anti-Fog TAC has 92% transmission rate & less than 0.5% haze value with the better visibility compared to other anti-fog film.
  • UGAM superior Anti-Fog Film has the unique advantage of the permanent hygroscopicity performance and more than 90% prepared by cotton seed, so it is an environmental material. We also call it as the “LEAF” （Lasting & Environmental Anti-Fog）.

Toward to meet the different needs of the market, UGAM has developed several different types of “LEAF”

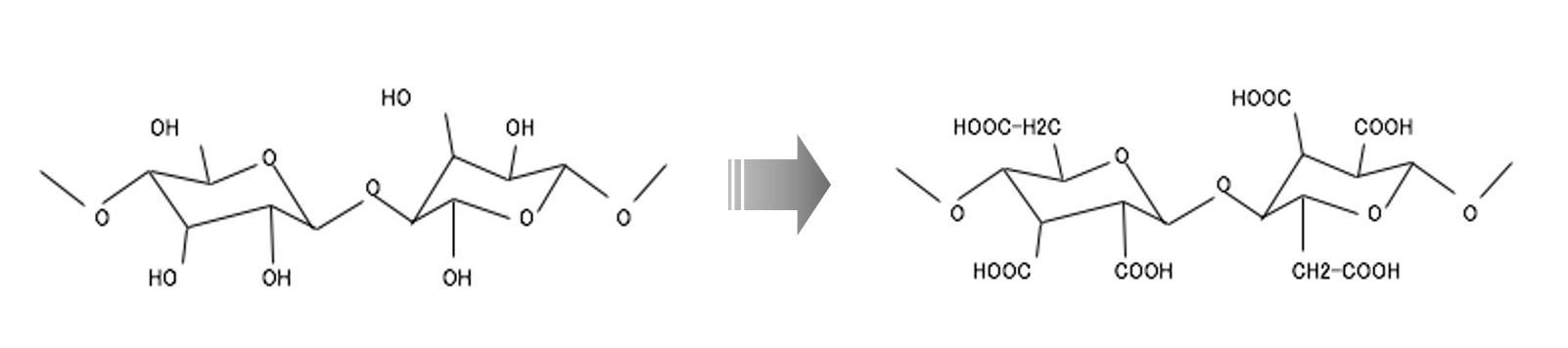

Changes in the chemical molecular structure of TAC by special chemical treatment

Conceptual Illustration of the permanent “Hydroscopic” of UGAM’s LEAF

LEAF Films

The finished product is mainly in roll form.

*** Customized dyeing requirements can be accepted ***

Specification

Product  Name Roll Length Film Thickness※1 Anti-Fog Performance※2 Transmittance※3
SAF-RT080P 2000M ±10% ~75um ≧ 20sec ≧ 92%
SAF-RT130P 1000M ±10% ~125um ≧ 50sec ≧ 92%
SAF-RT180P 600M ±10% ~175um ≧ 90sec ≧ 91%
SAF-RT245P 300M ±10% ~240um ≧ 180sec ≧ 91%
SAF-RT300P 300M ±10% ~295um ≧ 250sec ≧ 91%

※1 Detected by the internal film-thickness micrometer gauge

※2 Refer to EN 168 standard, detected by the internal measure apparatus

※3 Refer to JIS K 7361, detected by HITACHI 4000 spectrometer

Application

Medical Mask, Window Foils, Goggle or Shield Inner-lenses……etc.

LEAF Adhesives

The finished product is mainly in roll form.

*** Special adhesives can effectively adhere to the Glass, and many kinds plastic-plates ***

Specification

Product  Name Roll Length Film Thickness※1 Anti-Fog Performance※2 Transmittance※3
SAF-RT100G 2000M ±10% ~95um ≧ 10sec ≧ 91%
SAF-RT150G 1000M ±10% ~145um ≧ 30sec ≧ 91%
SAF-RT200G 600M ±10% ~195um ≧ 70sec ≧ 90%
SAF-RT270G 300M ±10% ~265um ≧ 150sec ≧ 90%
SAF-RT320G 300M ±10% ~315um ≧ 200sec ≧ 90%

Application

Medical Mask, Window Foils, Goggle or Shield Inner-lenses……etc.

*** Customized dyeing requirements can be accepted ***

LEAF Sheets

The finished product is mainly in roll form.

*** Sheet thickness can be customized; the maximum can be achieved 1.4mm thickness ***

Specification

Product  Name Structure Film Thickness Anti-Fog Performance Transmittance
MAF180-ST04P Both sides are Anti-Fog ~0.36mm ≧ 90sec ≧ 91%
MAF245-ST05P ~0.49mm ≧ 180sec ≧ 91%
MAF300-ST06P ~0.60mm ≧ 250sec ≧ 91%
Customization Max. 1.4mm − –
HAF180-ST05P One side is Anti-Fog; another side is Hard-Coating（HC） ~0.44mm ≧ 90sec ≧ 90%
HAF245-ST06P ~0.57mm ≧ 180sec ≧ 90%
HAF300-ST07P ~0.68mm ≧ 250sec ≧ 90%
Customization Max. 1.4mm – –

Application

Medical Mask, Goggle or Shield Inner-lenses……etc. (Good reputation in SNOW goggle application),Swimming goggle lenses

*** Customized dyeing requirements can be accepted ***

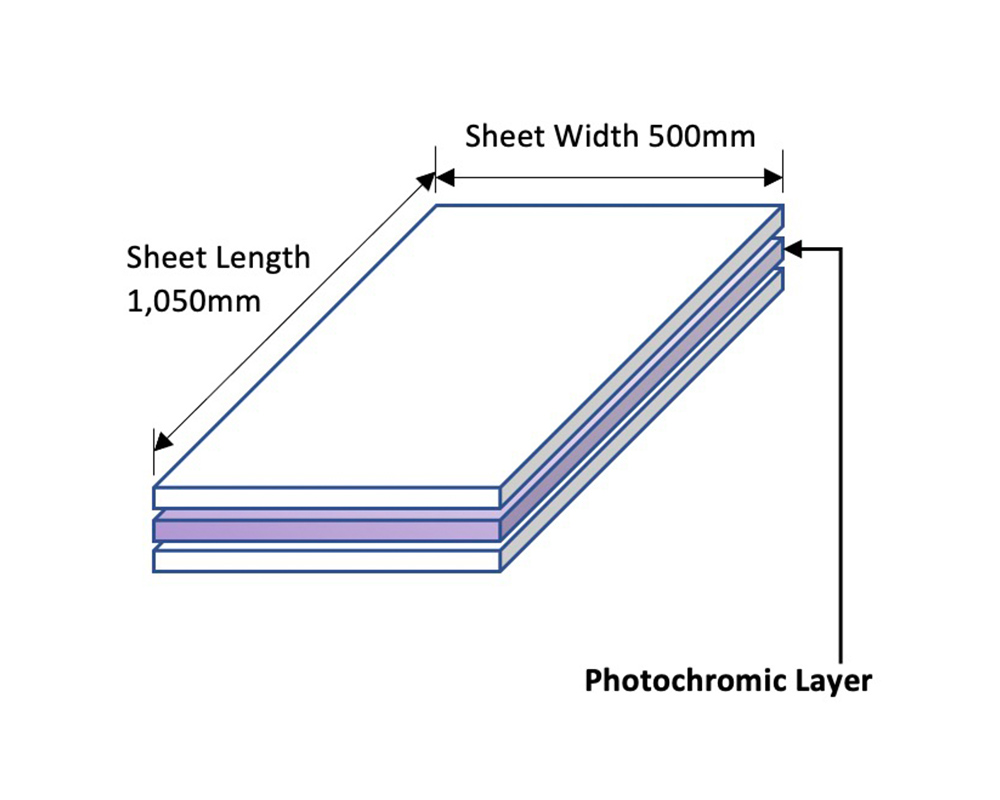

LEAF+Photochromic (Interlayer)

The finished product is mainly in roll form.

*** Sheet thickness can be customized; the maximum can be achieved 1.4mm thickness ***

Specification

Product  Name Structure Film Thickness Anti-Fog Performance Transmittance Difference
PHX-DAF05P Both sides are Anti-Fog ~0.54mm ≧ 90sec  85% → Min.25%

（Cat. 1 to 3 is easy）
PHX-DAF07P ~0.67mm ≧ 180sec
PHX-DAF08P ~0.78mm ≧ 250sec
PHX-HAF10P One side is Anti-Fog; another side is Hard-Coating（HC） ~1.00mm ≧ 180sec  85% → Min.25%

（Cat. 1 to 3 is easy）
Customization Max. 1.4mm −
PHX-DHC10P Both sides are Hard-Coating（HC） ~1.05mm –  85% → Min.25%

（Cat. 1 to 3 is easy）
Customization Max. 1.4mm –

Application

Medical Mask, Goggle or Shield Inner-lenses……etc. (Good reputation in SNOW goggle application),Swimming goggle lenses

*** Customized dyeing requirements can be accepted ***

LEAF+Polarizer (Interlayer)

The finished product is mainly in roll form.

*** Sheet thickness can be customized; the maximum can be achieved 1.4mm thickness ***

Specification

Product  Name Structure Film Thickness Anti-Fog Performance Polarization Efficiency
DP-DAF04P Both sides are Anti-Fog ~0.39mm ≧ 90sec From 99% to 65% can be chosen
DP-DAF05P ~0.52mm ≧ 180sec
DP-DAF06P ~0.63mm ≧ 250sec
DP-HAF10P One side is Anti-Fog; another side is Hard-Coating（HC） ~1.00mm ≧ 180sec From 99% to 65% can be chosen
Customization Max. 1.4mm −
DP-DHC10P Both sides are Hard-Coating（HC） ~1.05mm – From 99% to 65% can be chosen
Customization Max. 1.4mm –

Application

Medical Mask, Goggle or Shield Inner-lenses……etc. (Good reputation in SNOW goggle application),Swimming goggle lenses
