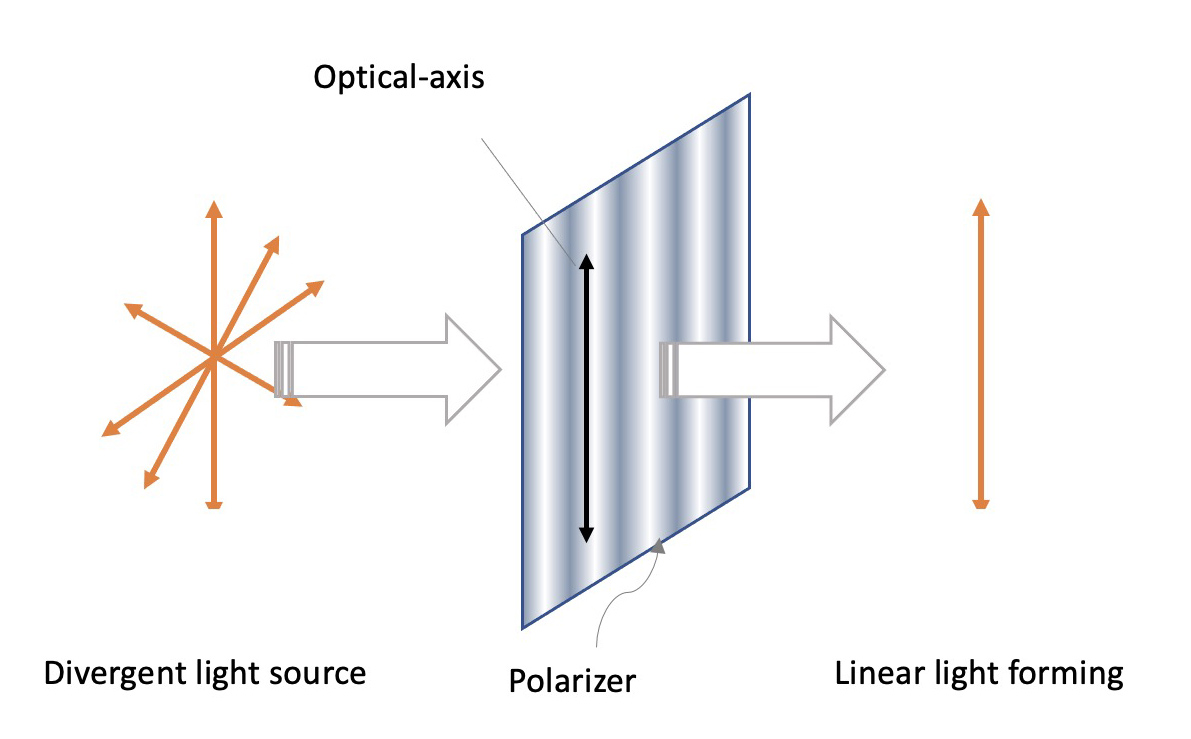

Conceptual diagram of the mechanism and its function of Polarizer
The difference between the actual effects of polarized filter and non-polarized filter
Without Polarizer
With Polarizer
The finished product is covered with PE protective on both sides in roll form.
| Product Name~ | Roll Length | Film Thickness※1 | Transmittance※2 | Polarizer Efficiency※2 |
| G38 | 2000M ±10% | ~30um | ~38% | ≧ 95% |
| G44 | ~44% | ≧ 88% | ||
| G48 | ~48% | ≧ 75% | ||
| G54 | ~54% | ≧ 60% |
※1 Detected by the internal film-thickness micrometer gauge
※2 Refer to JIS K 7361, detected by HITACHI 4000 spectrometer
Display, Lens Filter, and Sunglass or Eyewear lens……etc.
UGAM offers many different colored-polarizer sheets by owner color-dyeing and multi-laminating technology. A lot of colors of polarizer can be satisfied all specific requirement. Furthermore, all clients can choose the AS（anti-scratch） over the both sides of sheet, or one side is AS, and another side is LEAF（Lasting Environment Anti-Fog）to match with the final application goods.
| Color | Product Name | Specification Size | ||||
|---|---|---|---|---|---|---|
| Transmittance | Polarization Efficiency | Hue | ||||
| a | b | |||||
| Smoked |  |
S15S | 15%~ | >99.9% | -1.9 | -5.2 |
| S32S | 32%~ | >99.9% | -1.3 | -2.0 | ||
| S48P | 48% ~ | >72.0% | -0.8 | -1.4 | ||
| Almond |  |
A35P | 34% ~ | >75.0% | 10.6 | 22.7 |
| A40R | 40% ~ | >65.0% | 9.1 | 27.6 | ||
| Green |  |
G15S | 15% ~ | >99.9% | -9.9 | -0.1 |
| G30S | 28% ~ | >99.9% | -9.7 | 2.8 | ||
| Brown |  |
B20S | 21% ~ | >99.9% | -0.3 | 14.5 |
| B32S | 32% ~ | >99.9% | 1.0 | 19.1 | ||
| Red |  |
R25S | 25% ~ | >99.9% | 20.4 | 2.8 |
| R30P | 28% ~ | >70.0% | 31.4 | 7.1 | ||
| R50R | 48% ~ | >65.0% | 24.6 | 7.7 | ||
| Yellow |  |
Y40S | 38% ~ | >99.9% | -10.8 | 27.4 |
| Purple |  |
P40P | 40% ~ | >72.0% | 17.0 | -7.4 |
| P45P | 44% ~ | >70.0% | 11.3 | -12.6 | ||
The finished product is mainly in sheet form.
*** Sheet thickness can be customized; the maximum can be achieved 1.4mm thickness ***
| Product Name | Structure | Film Thickness | Anti-Fog Performance | Polarization Efficiency |
| DP-DAF04P | Both sides are Anti-Fog | ~0.39mm | ≧ 90sec | From 99% to 65% can be chosen |
| DP-DAF05P | ~0.52mm | ≧ 180sec | ||
| DP-DAF06P | ~0.63mm | ≧ 250sec | ||
| DP-HAF10P | One side is Anti-Fog; another side is Hard-Coating（HC） | ~1.00mm | ≧ 180sec | From 99% to 65% can be chosen |
| Customization | Max. 1.4mm | − | ||
| DP-DHC10P | Both sides are Hard-Coating（HC） | ~1.05mm | – | From 99% to 65% can be chosen |
| Customization | Max. 1.4mm | – |
Sunglass or Eyewear lens……etc.
